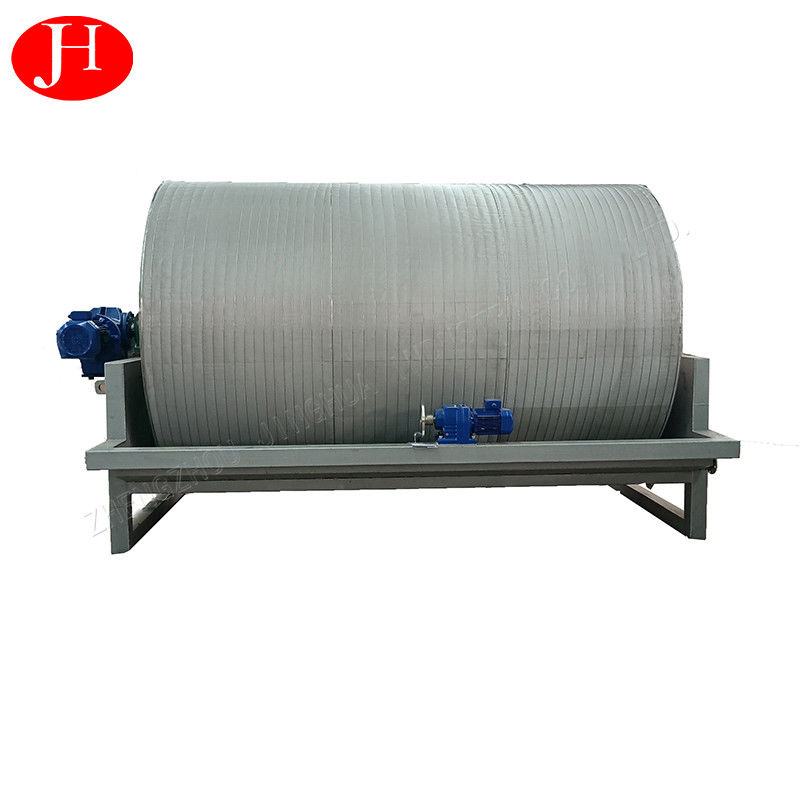

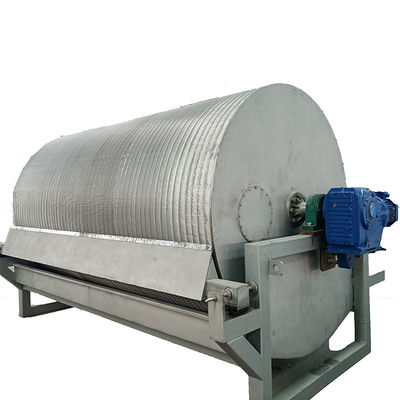

Full Stainless Steel Cassava Starch Vacuum Filter Processing Equipment
Datos del producto:
| Nombre de la marca: | JINGHUA |
| Número de modelo: | Filtro de vacío |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | Negociable |
| Tiempo de entrega: | 10 días laborables |
| Condiciones de pago: | LC, D/P, D/A, Western Union, T/T, MoneyGram |
| Capacidad de la fuente: | 10 |
|
Información detallada |
|||
| Tratamiento: | Operación fácil | Tipo de instalación: | Montado en el piso |
|---|---|---|---|
| Características: | Operación automática | Capacitación: | Sí |
| Producto final: | Noodles redondos y delgados | Sistema de control: | panel de control del plc |
| Producto principal: | Sacudida cuadrada | Nivel de automatización: | Semiautomático |
| Técnicas de procesamiento: | Personalizado | Máquina: | máquina de molinillo de yuca |
Descripción de producto
Main technical parameters
|
Model |
KLG12 |
KLG20 |
KLG24 |
KLG34 |
|
Vacuum degree(Mpa) |
0.04~0.07 |
0.04~0.07 |
0.04~0.07 |
0.04~0.07 |
|
Content of solid(%) |
≥60 |
≥60 |
≥60 |
≥60 |
|
Feeding density(Be°) |
16-17 |
16-17 |
16-17 |
16-17 |
|
Capacity(t/h) |
4 |
6 |
8 |
10 |
|
Power |
3 |
4 |
4 |
4 |
|
Drum rotary speed(r/min) |
0-7.9 |
0-7.9 |
0-7.9 |
0-7.9 |
|
Weight(kg) |
3000 |
4000 |
5200 |
6000 |
|
Dimension(mm) |
3425x2312x2213 |
4775x2312x2213 |
4785x2630x2600 |
5060x3150x3010 |
Advantages of vacuum filter
1.Combining the latest technologoy and years experience into a whole.
2.Fully stainless steel for parts contacting with material,compact structure and nice design
3.Speed of rotating dum can be adjusted according to actual site.
4.Material umloaded through blade, which is made of high rigid aly and can be adjusted.
5.Stimer's rumning frequency can be adjusted.
6.Continuous adjusting for fhuid-level control.
7.Low energy consumption,small areafindly operation and stable running.
8.Widely used for dewatering of suspension in starch processing.
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4: Are your products can be assured ?
A: Our machines are all have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
